Garage Door
We work with structural engineers to obtain plans when installation of steel work is required. Not only is this often a legal requirement, but it provides appropriate assurances that the work is done correctly.

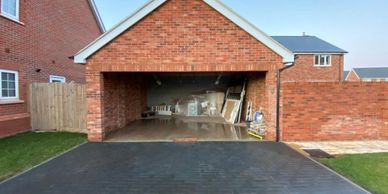

Our client wanted to remove the two double garage doors, and insert a single garage door spanning the entire width.

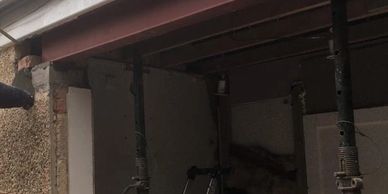

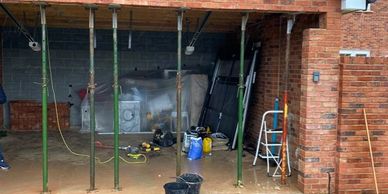

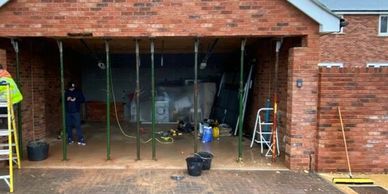

An appropriate steel was designed by our structural engineer. We removed the wall after supporting the load from above using steel props.
Steels are inserted into the opening according to the specification on the structural plan (in this case using a spreader plate)
Brick work was repaired

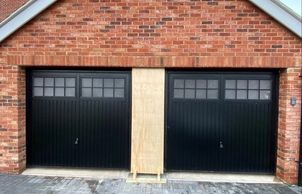

The next step in the process was to get our partners to manufacture the garage door. In the meantime, we temporarily resealed the opening using the existing doors and a timber central section. ensuring the old doors were still operational.
A Hormann sectional garage door, with deco-grain finish was installed into the opening
FASCIA Soffit and Guttering
Removal of top section of chimney
Removal of top section of chimney
Removal of top section of chimney

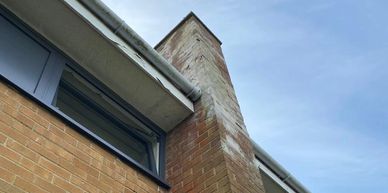

The Project specification was to remove the top section of the chimney, replace the soffits, facia and guttering
Removal of top section of chimney
Removal of top section of chimney

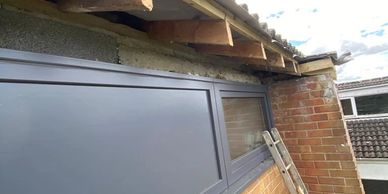

The top section of the chimney was removed, existing wooden soffits and facia were completely removed and replaced with modern upvc materials
Completed Job
Removal of top section of chimney
Completed Job
New guttering was also installed giving the roofline a fresh new look.
RE-pOINTING
Joints are raked clean to allow new mortar to penetrate

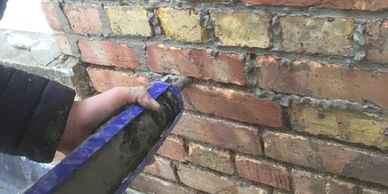

Injection of fresh mortar. using a mortar gun.

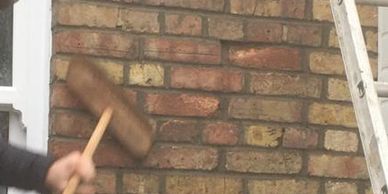

Brushing away excess mortar
Patio Installation

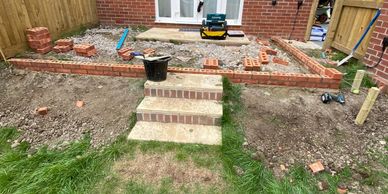

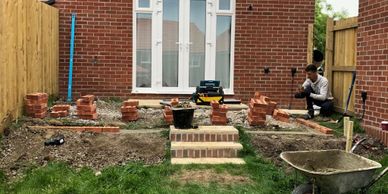

Construction of Brick Perimeter Wall
Construction of Brick Perimeter Wall
Construction of Brick Perimeter Wall
Construction of Brick Perimeter Wall
Construction of Brick Perimeter Wall
Fill in and compaction with hard core to provide the paving slabs with a solid foundation
Paving
Construction of Brick Perimeter Wall
Paving

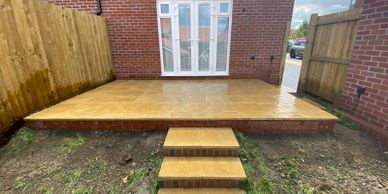

Installation of concrete paving slabs according to our clients specification.
timber SubFloor

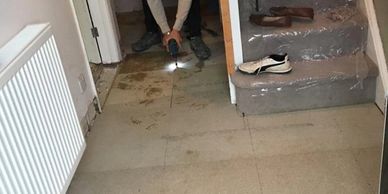

An old creaky, drafty and un-insultated timber subfloor was demolished and the area cleaned

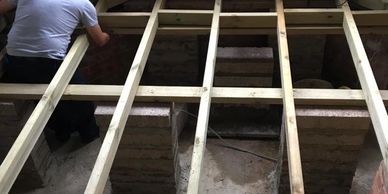

New concrete block piers were installed and new timbers used to create a new subfloor

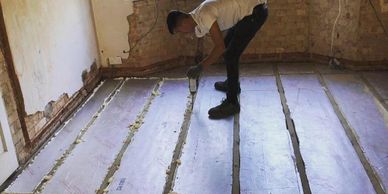

Celotex Insulation was installed and sealed using expanding foam to ensure a well insulated subfloor
18mm chipboard flooring installed on top of insulation, ready for installation of finished flooring
18mm chipboard flooring installed on top of insulation, ready for installation of finished flooring
Bi-fold door installation
Our client didn't want to be disturbed by the building work or weather, so we erected a temporary partition a few feet away from the back wall.

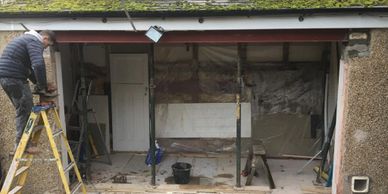

The steel work was inserted after the wall was removed and the load from room above supported by props.
Steel resting on 200mm bearing on concrete padstone

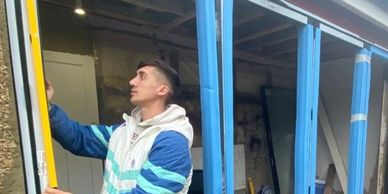

Installation of bi-fold door system
removal of fireplace

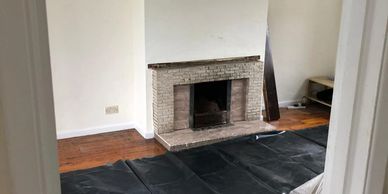

Our client wanted to remove the fireplace for installation of a wood burning stove.

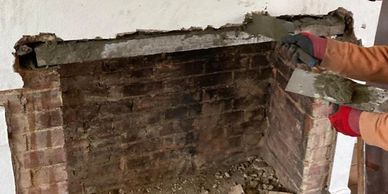

Lintel was installed to support the weight of the load above

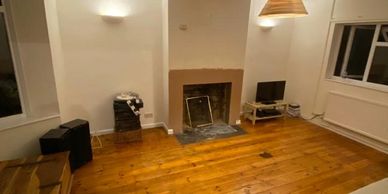

The area was plastered, and we left the area clean ready for the client to decorate as agreed.
